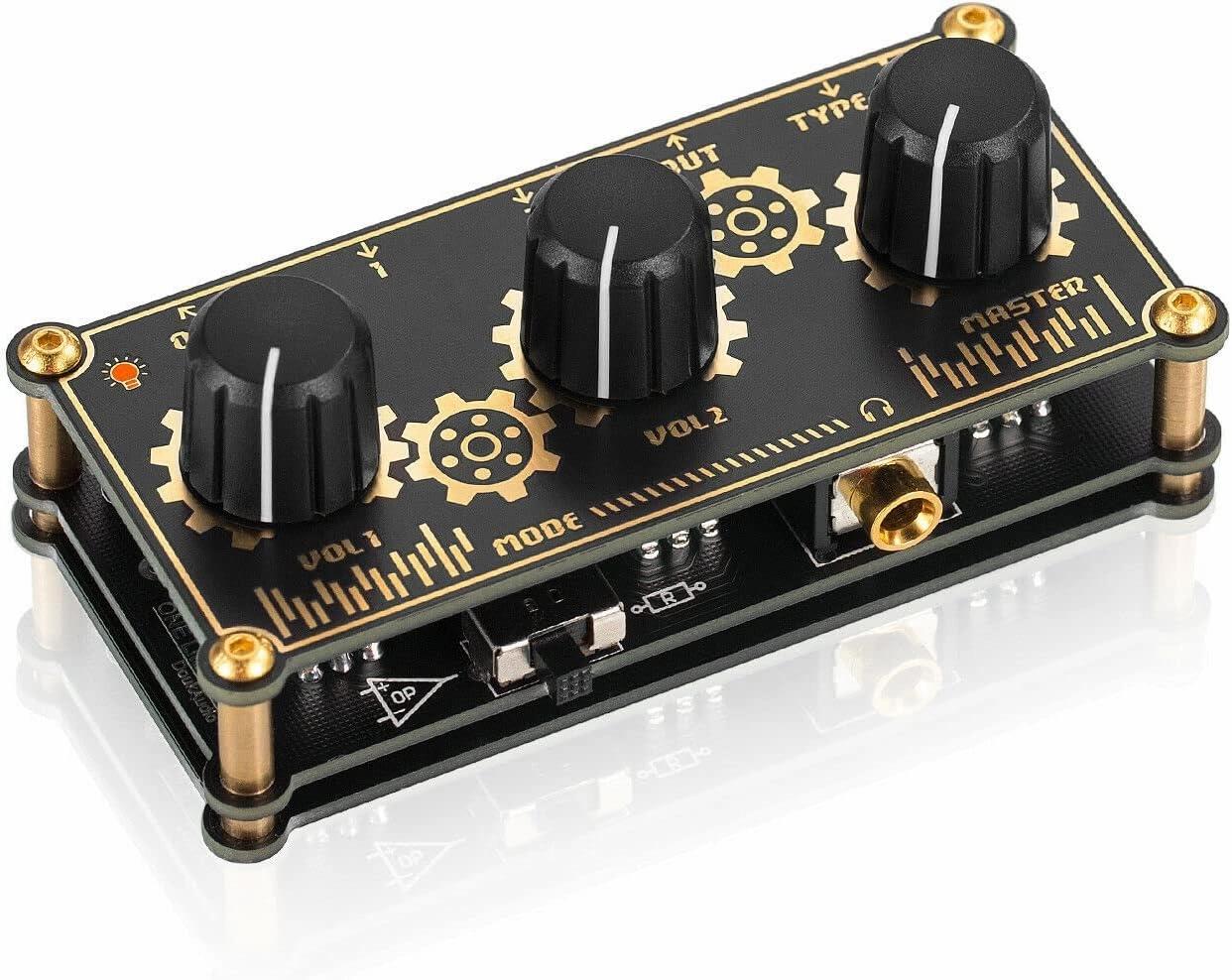

- MX3 is a mini audio mixer with 2 groups of 3.5mm inputs, 1 group 3.5mm AUX output and 3.5mm headphone jack output, which is capable of mixing the signals from CD players, instruments, portable recording devices, video playback devices and so on.
- MX3 supports two working modes to satisfy different requirements: 1. Active mode: need to connect independent USB power, built-in audio amp chip will work, amplify the mixed audio signal and output larger power, can connect headphones to monitor music directly via the 3.5mm headphone jack.
- 2. Passive mode: no power required, MX3 will work in the state of pure resistance attenuation, output audio signal will be a little attenuated. And the headphone jack output will not support headphone monitoring directly but need to add a headphone amp.
- With one main output volume knob and two independent input volume knob, the input level of 2 groups can be controlled separately, have no interference to each other. Providing the highest sonic quality even at maximum output level.
- Mini size with exquisite appearance, flexible circuit both provides monitoring and mixing functions, and won’t make interference to the sound quality, compact design is very convenient to carry and use any time any where.
Warm Tips
1. In active mode, please use independent USB power supply to power MX3, cannot share the same power supply with audio device, or else common ground noise will be caused.
2. The 3.5mm headphone jack output is prior, 3.5mm AUX output on the back panel will auto disconnect if headphone is inserted.
3. Recommend to use active mode if want to connect headphone for monitoring, or else the output sound will be very small.
4. Please keep wireless device such as WIFI or phone away from MX3, or else noise may be caused.
5. MX3 only supports standard audio signal such as CD / DVD / phone, cannot connect phono turntables or MIC directly.
Parameters
Audio input: 2 groups of 3.5mm AUX
Audio output: 1× 3.5mm AUX / 1× 3.5mm headphone jack (cannot output at the same time)
Passive mode:
No power required, passive control.
Input impedance: 50KΩ
Output impedance: 4.7KΩ
Active mode:
Working voltage: DC 5V (≥0.5A)
Power interface: Type-C USB
Output impedance: 3Ω
Dimensions(W*D*H): 84*43*22mm / 3.31*1.69*0.87in
Net weight: 69g / 0.15lb
Package weight: 200g / 0.44lb
Packing List
1× MX3 Line Mixer
1×Type-C USB Cable
