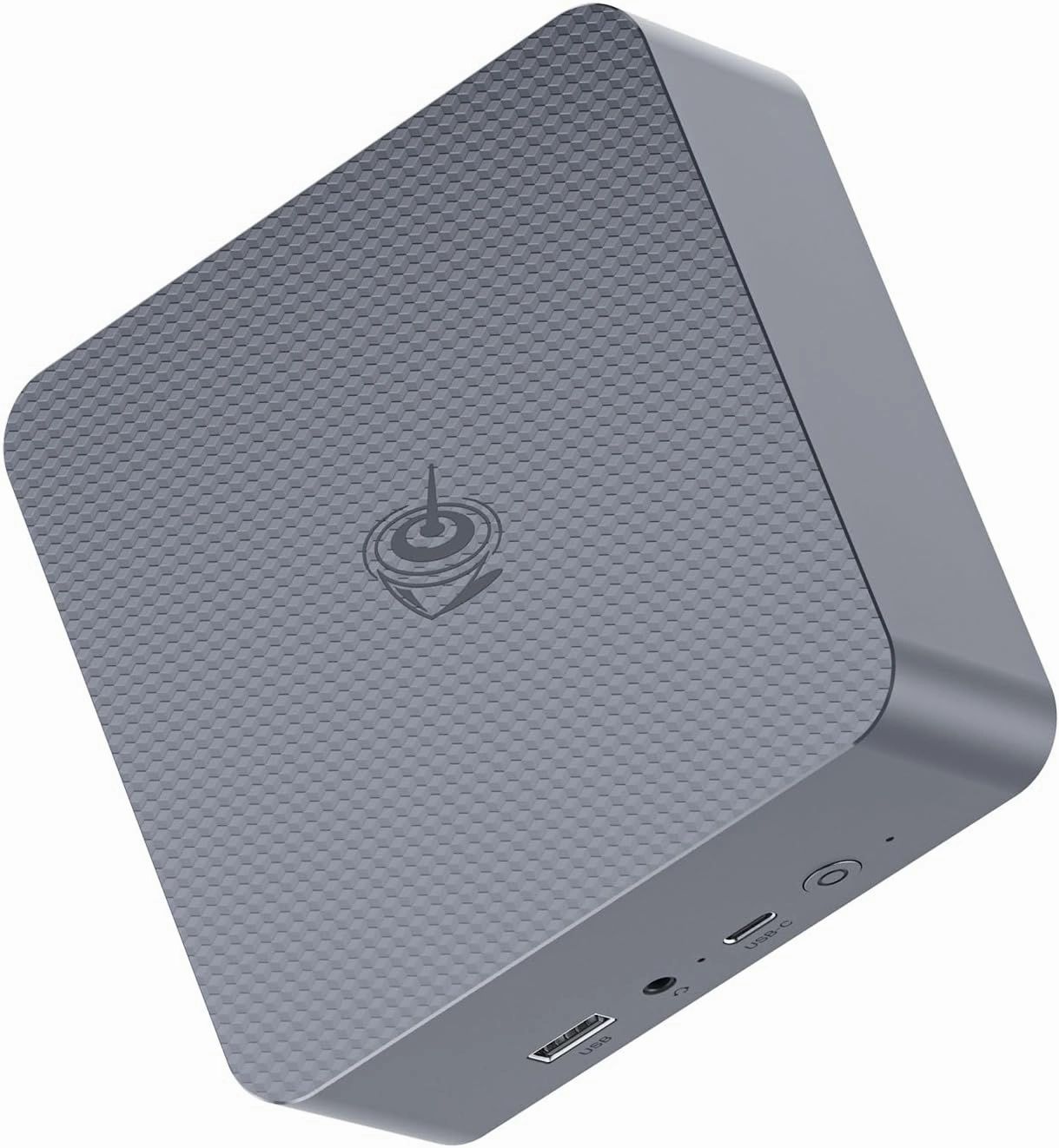

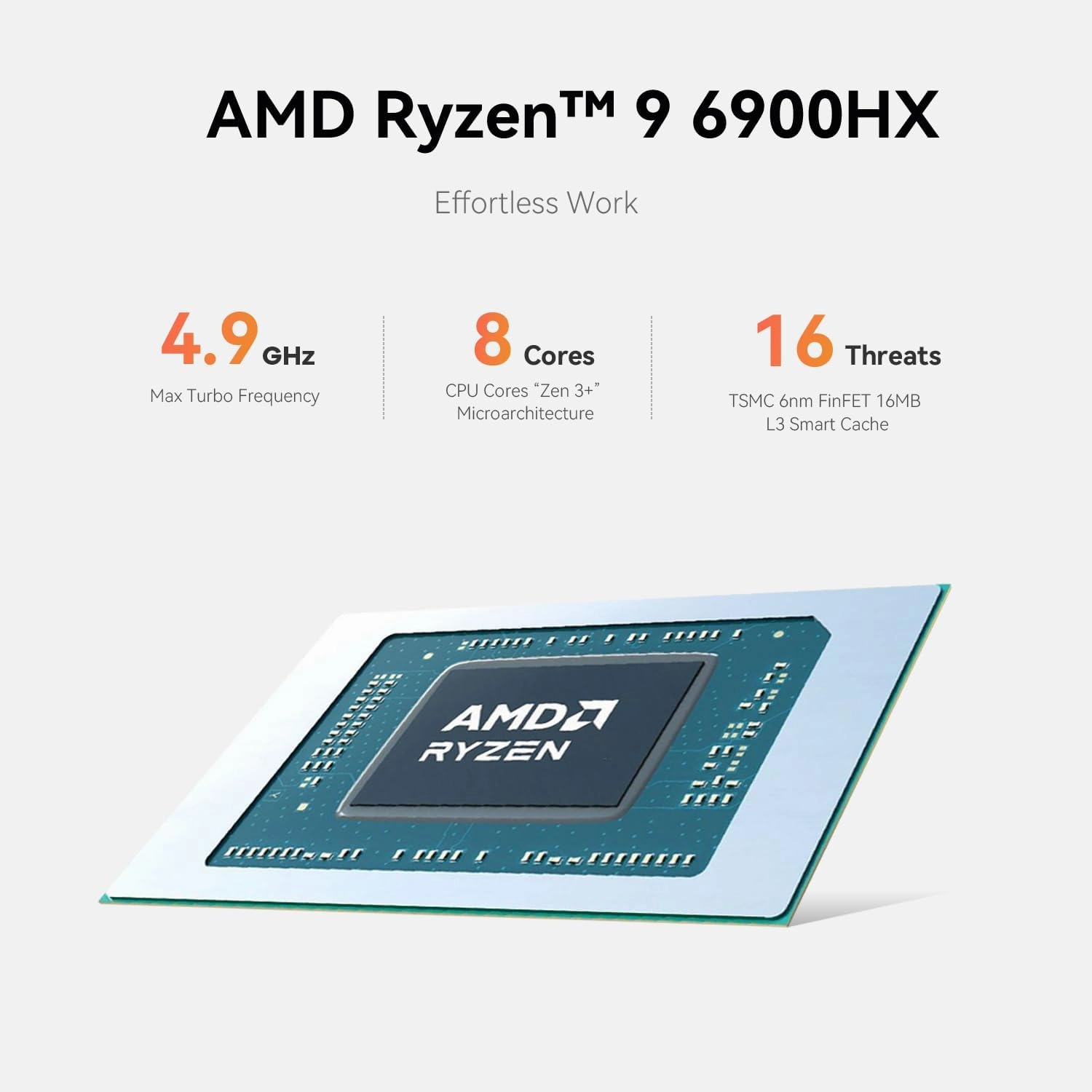

- 🔥【Faster & Better AMD Processor】The Beelink EQR6 Mini PC is powered by AMD Ryzen 9 6900HX (8C/16T, 16MB L3 Smart Cache). The base frequency is 3.3GHz / the dynamic frequency can reach 4.9GHz. Features revolutionary 6nm technology for a next-generation multi-tasking experience that takes processing speeds. It is widely used for image editing(CAD, PS, Pr, Ai), office software, creative design, programming, and HTPC/Zoom meetings/Skype, etc.
- 🔥【4K UHD & Dual Screen Display】The 6900HX Mini Computer is equipped with AMD Radeon 680M 12core 2400 MHz, supports 4K video playback and web surfing, and can be connected to a projector for home theater and a variety of entertainment. Dual 4K@60Hz screen display output via Dual HDMI, which enable you to multi-task easily, and enough to meet your various needs.

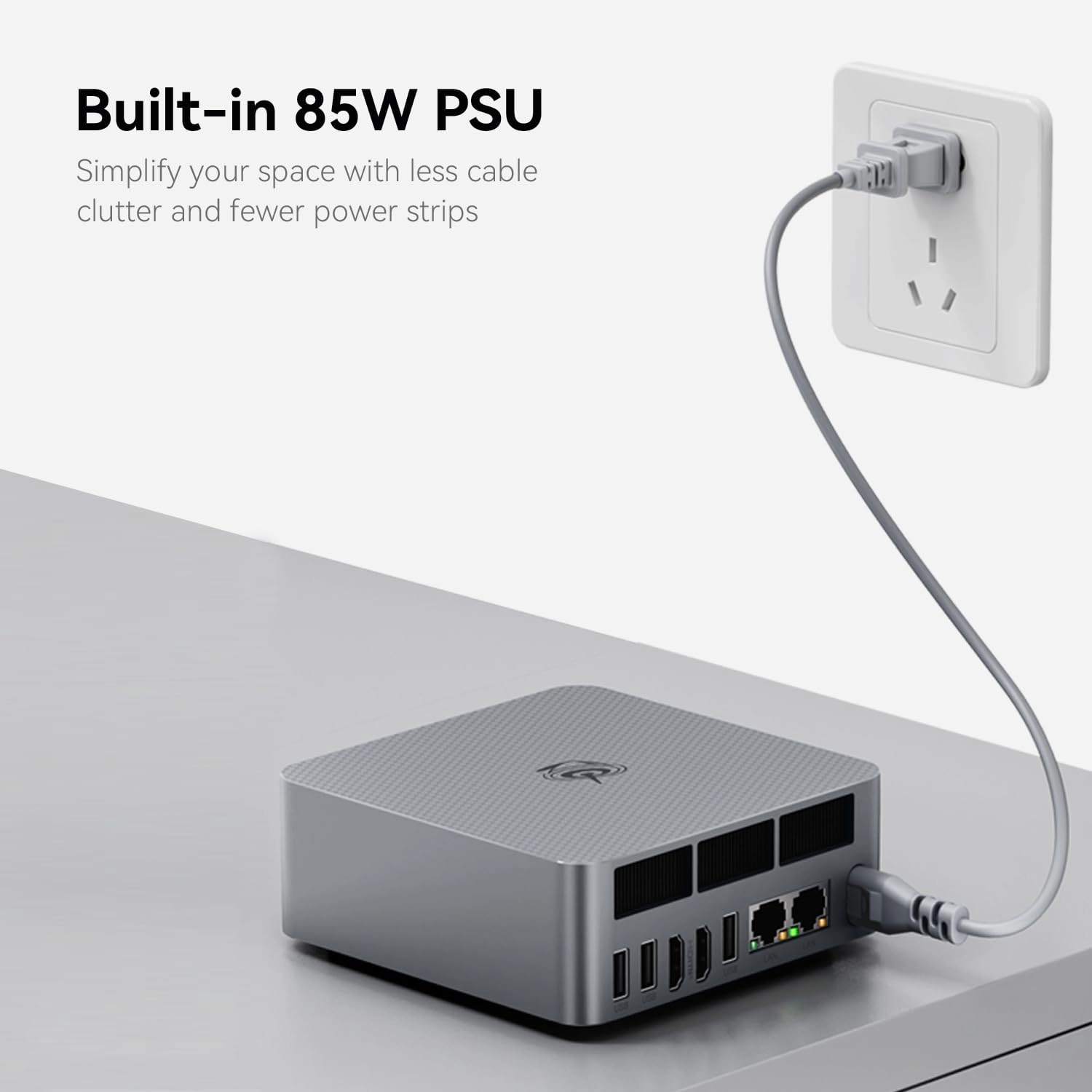

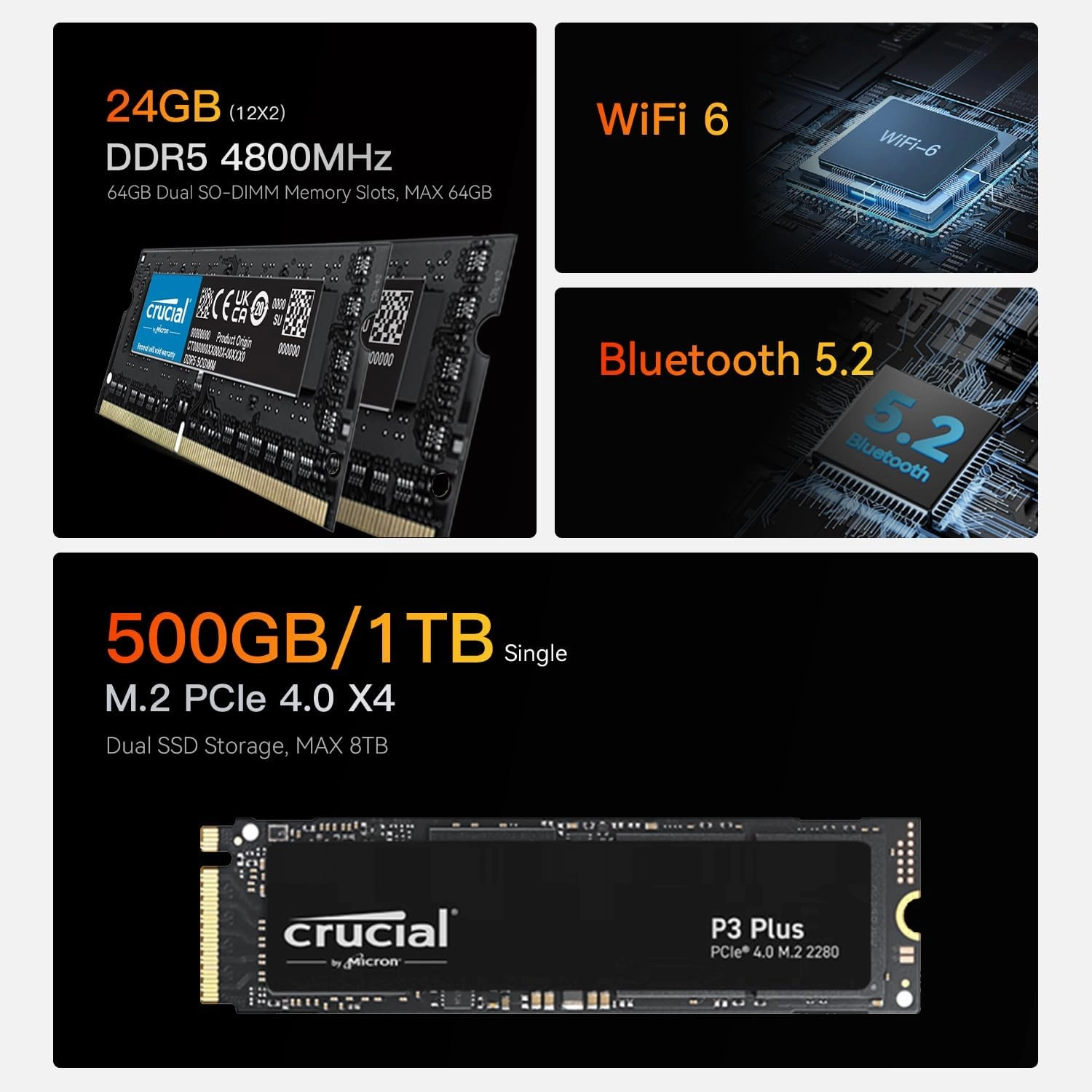

- 🔥【Capacity Expansion & Hidden Power】What sets this 6900HX Mini PC apart from other mini pc is that it has empty expansion bays that can be added. Beelink Mini PC has a Dual channel 24GB SO-DIMM DDR5 upgradeable to max 64GB(2 x 32GB), 1TB M.2 NVMe PCIe 4.0x4 SSD (Dual SSD Max Storage 8TB). Our designers spent half a year redesigning the machine mold to create more internal space for the power supply. When you use this mini pc, you can find that the machine only needs one AC cable to power on, and the desktop will be very clean and tidy.

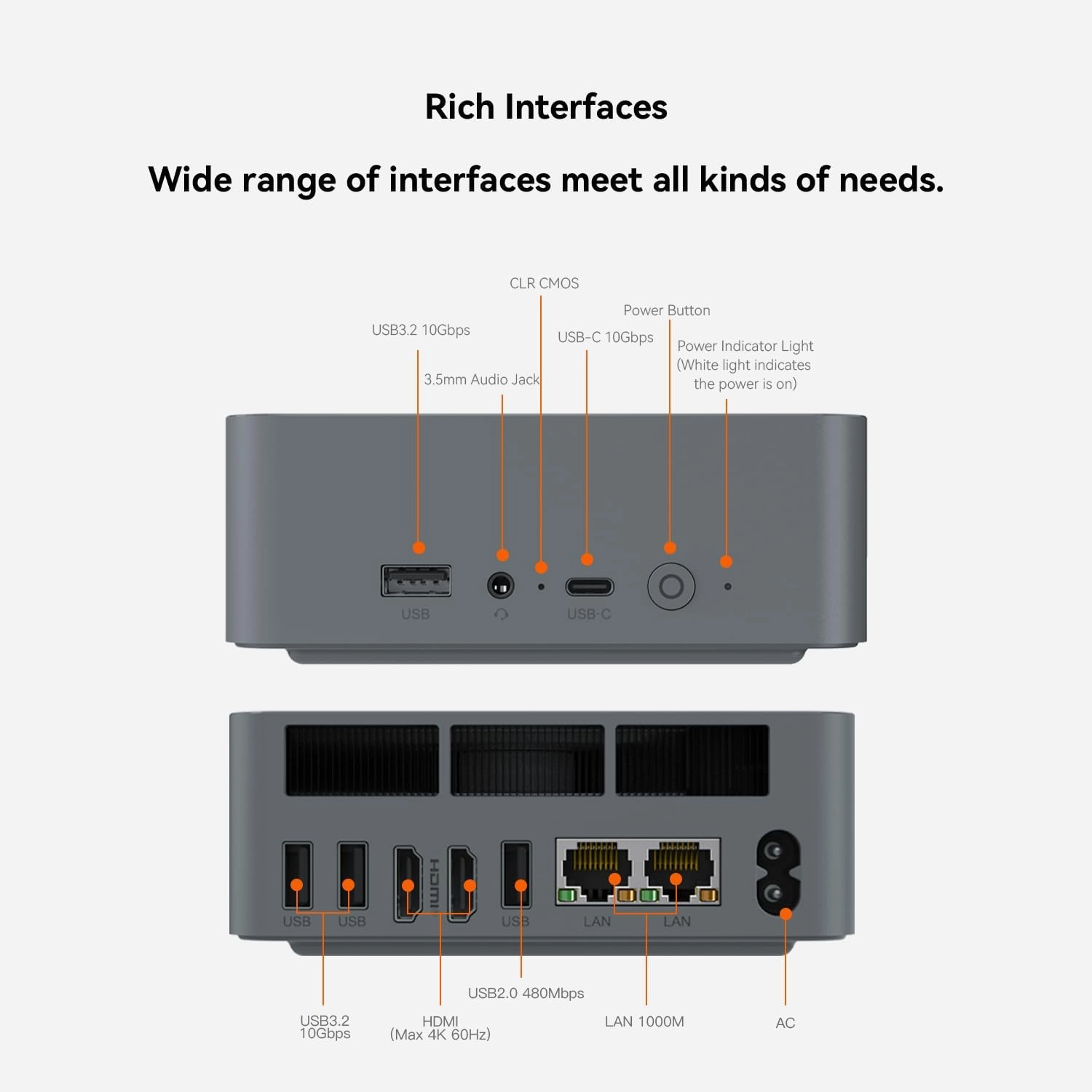

- 🔥【Rich Interfaces & Wireless】The Beelink Mini PC is designed with 2*HDMI, 1*USB-C(data 10Gbps), 2*RJ45 1000M LAN, 3*USB3.2 10Gbps, 1*USB2.0 480Mbps, 1*3.5mm Phone Jack*1(Two-in-one)Realtek ALC897, and 1*AC Jack, easily meet office business needs, home audio, and video needs. The Mini PC supports Wake On LAN, and Auto Power On, which can be used as a server for media (Plex or FTP). The Mini Computer built-in Wifi 6 802.11ax 2.4G 5G Dual Band and BT5.2, which can connect faster Speed and Farther Coverage, ensure stable data transfers
- 🔥【Accessories & Customer Service】All Beelink Mini PC have passed strict inspection before shipping. The accessories include 1 x User Manual, 1 x HDMI Cable, and 1 x Power Adapter(US, If you want EU/UK, please contact me). We offer lifetime technical support, 24/7 after-sales service, and a 1-Year-free warranty. All of our products obtained CE, FCC, and RoHS certifications. If you have any product-related questions, you can contact us.
🔥Parameter Information
CPU：AMD Ryzen 9 6900HX 3.3-4.9GHz 8C/16T L2 4MB L3 16MB
Graphics：AMD Radeon 680M 12core 2400MHz
Memory：SODIMM DDR5 Max 64GB
RTC：Real-time Clock, Time Boot
Auto Power On： Support auto power on after electrified
Wake On LAN：Supported
TPM：Support TPM 2.0/AMD PSP 11.0
WIFI：Intel AX200, IEEE 802.11ax
Bluetooth：Intel AX200, Support Bluetooth 5.2
📢Installation Tips
To avoid initial setup problems, the first time you use the Beelink Mini PC, follow the steps below to set it up.
1) Please do not connect the network or wifi until your mini computer's operating system is working.
Please remember not to fill in the email, skip this step, you can use the machine normally.
2) If you only use the wired network to connect the micro pc, please disconnect the wired network directly,
restart the machine, and connect to the network after successfully entering the operating system.
3) If you have connected to WIFI when it cannot load on OS, please turn off the router you are using.
🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰
⚠️Cautions
In order to continue improving the user experience, we may occasionally update the application and firmware.
● Do not use chemical solvents or aggressive cleaning products.
● Do not throw the product into fire to avoid accidents.
● Be aware of leaks when cleaning electronic components, be careful of electric shock.
● Check for frayed or damaged cables or plugs.
● Do not arbitrarily discard the product, we must protect the environment.
● Operating environment:-10°C-45℃,30%-90% humidity.
● Storage environment: -20℃-60℃,10%-90% humidity.
🙎Excellent Service
✔️1-Free replacement for one year.
✔️Lifetime Technical Support.
✔️Passed FCC, CE, ROHS safety certificates.
🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰
🙋♂️Questions & Answers
❓ What do I need to be aware of when using this mini pc for the first time?
✍️ To avoid initial setup issues, the first time you use this mini pc,
don't connect network or wifi until the windows system of your mini pc is running.
❓How to enter BIOS?
✍️Press "delete" to enter the BIOS settings; press "F7" to enter the boot options menu
(click continuously immediately after booting).
❓How to Switch the Audio Playback Device in Windows?
✍️If your Windows Mini PC is connected to multiple audio playback devices
(e.g.speakers, headphones, webcams with built-in microphones, and Bluetoothheadsets)
simultaneously, you will need to choose one of them for audio playback.
❓Can I take the mini computer to other countries for use?
✍️Of course, this beelink mini pc supports 100-240V, you can use a power converter.
If you need other specifications such as British regulations or European regulations,
please contact me and I can send the power cable to you for free.
❓Does the Beelink Mini PC have a built-in system?
✍️The mini computer has a built-in universal system that meets the needs of more than 99% of people.
If you need other systems such as Linux, you can install the system yourself after receiving the mini pc.
❓What's in the box?
✍️1 x Mini PC, 1 x HDMI Cable, 1 x Power Adapter, 1 x User Manual
🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰🟰
🛠️After-sales Solutions
📞What to do if the machine cannot enter sleep mode?
① Please disable startup in the power option. In Control Panel, click the Power Options.Select the Choose what the power buttons do.
Uncheck the “Turn on fast startup.” Click Save the changes.
② Restore Default Power Plan Settings. Open the Control Panel on your PC by clicking on the Start button and by typing "Control Panel" in the search bar.
Select "Control Panel" from the list of search results. In the Control Panel, set your viewing mode to "Large icons" and then click on "Power Options."
Find your current power plan and click on "Change plan settings" next to it. On the screen that opens, click on "Restore default settings for this plan."
A prompt will appear asking if you're sure you want to restore the default settings. Click "Yes" to confirm your action.
③ Turn Off Hybrid Sleep Mode. Type "Control Panel" into the search bar on your computer and open the first entry that appears.
Navigate to Hardware and Sound> Power Options> Change plan settings next to your current plan,
and then click on the Change advanced power settings link.A small window will appear. Locate the "Sleep" option.
Tap on the plus ( ) icon next to "Sleep" to expand the set of options. Click on "Allow Hybrid Sleep" to bring up another drop-down menu.
Make sure that both the “On battery” and “Plugged in” options are set to the “Off” setting.Click the Apply button to finalize the changes.
📞When I turn on the PC, asking for defaultuser0 password.
① Please hit "Windows key R” and type “netplwiz” , then type the command OOBE\BYPASSNRO,the PC will reboot.
② Press SHIFT F10, a terminal will open.Type OOBE\BYPASSNRO the PC should reboot. When asked about the network,
choose I don't have internet, the setup process should continue and you should be able to create a local account.
📞How to deal with the blue screen of death on the mini pc?
① After unplugging all the cables, find a pin and insert it into the CMOS hole for more than 10 seconds, then reconnect the cables and restart the machine
② Please take out the SSD and RAM and then put them back , make sure they are installed properly.
Also please clean the contacts of the RAM with a rubber. If it still doesn’t work, please press delete key as soon as you turn on the PC,
so that you can go to BIOS, please check you can see SSD there.
③ Please try to re-install the system.
📞How to solve the problem when the mini pc fan is noisy and the temperature is high?
① Please repeatedly press delete key as soon as you turn on the PC, go to BIOS.
Please send us a picture of the Main page, we will check if you need to update the BIOS.
② If updating the BIOS cannot solve the problem, please adjust the fan speed.
③ Please adjust the VRAM in the BIOS, sometimes changing the VRAM can also help.
④ Overheating. If Mini PC is overheating, please check if the fan spins. You can also turn off the turbo boost.
Adjust power settings: Adjust the power settings on your PC to optimize performance and reduce heat generation.
Lowering the maximum processor state or using power-saving modes can help.
Go to control panel ---power option---change to High performance--- change plan setting---advanced setting
---processor power management--- change both 100% to 99% , click save.
⑤ Remove the fan, clean it and apply a very small amount of nonconducting lubricant to the shaft and reassemble the unit
